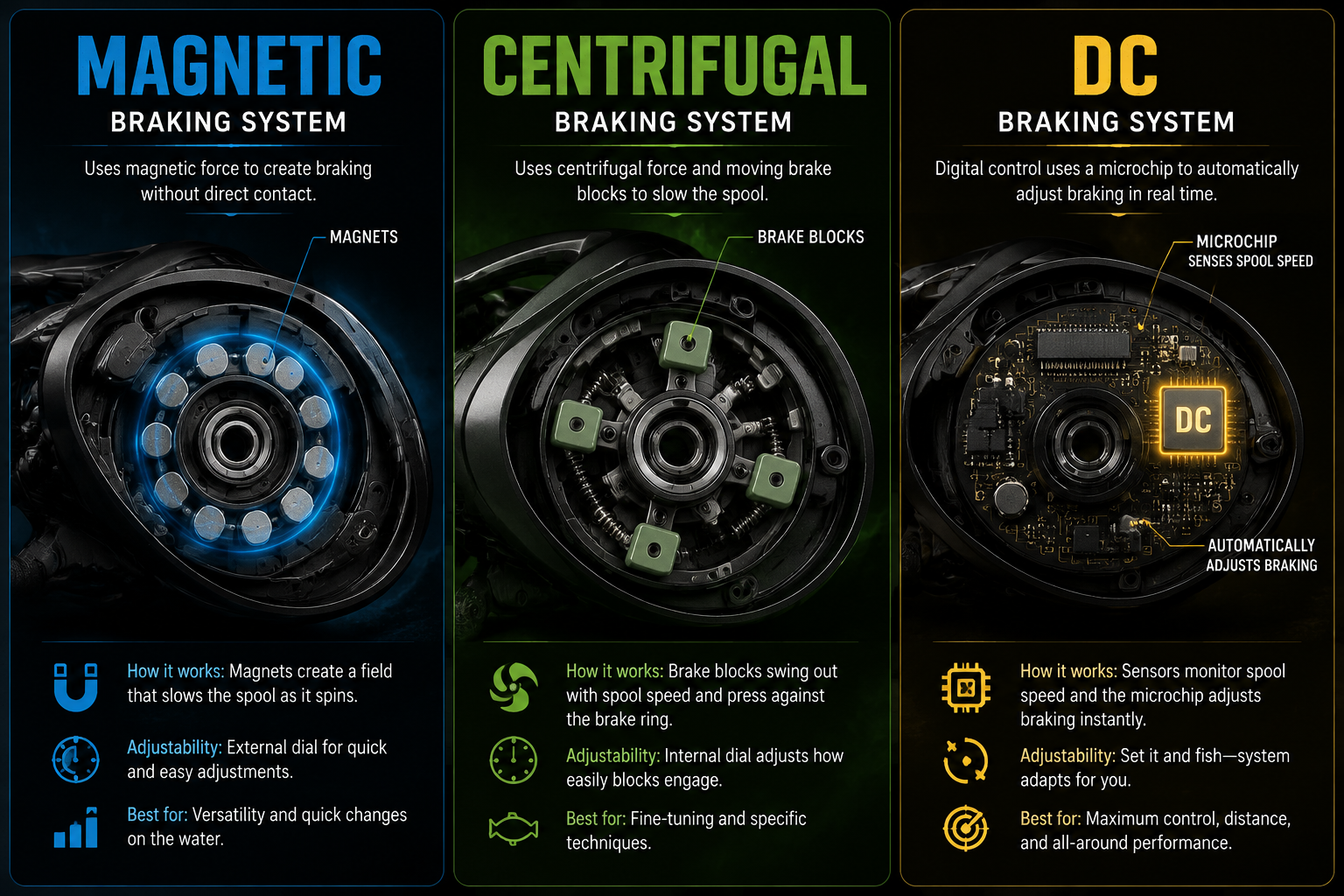

Baitcaster Braking Systems Explained: Magnetic, Centrifugal, and DC
A baitcaster's braking system manages spool speed during a cast to prevent overruns and backlashes without sacrificing distance. This comprehensive guide breaks down the mechanical principles, advantages, limitations, and operational differences between Magnetic, Centrifugal, Digital Control (DC), and Hybrid braking systems, helping you select and tune the right reel for your lures, wind conditions, and casting style.
A baitcaster brake does not replace your thumb, nor is it the same control as spool tension. Its job is to manage spool rotation speed during flight so the spool does not feed line faster than the lure can pull it away. Magnetic, centrifugal, and electronically controlled systems approach this job with fundamentally different mechanical principles.
The practical takeaway: magnetic brakes offer fast external adjustment, centrifugal systems react dynamically to spool speed, and electronically controlled (DC) systems alter braking through programmed digital logic. Hybrid reels combine multiple approaches into a single frame. The optimal choice depends on your lure weight range, casting motion, wind conditions, and personal tuning preference.
If you are learning the initial setup process, review our guide on how to set up a baitcasting reel without backlashes first. You can also explore our full lineup of baitcasting reels to compare models by brake type and performance specifications.
What a Baitcaster Brake Actually Controls
During a cast, the reel spool accelerates rapidly to high RPMs. As the lure travels downrange, wind resistance and gravity gradually slow its momentum. If the spool continues revolving at its initial high speed, loose line uncoils off the spool face, creating a backlash (or "bird's nest").
Brakes apply controlled rotational resistance directly to the revolving spool assembly. Different systems vary in when and how that resistance changes throughout the trajectory of the cast. While proper braking significantly minimizes line overrun, it cannot correct every mistakeβoverfilled spools, abrupt casting strokes, improper rod loading, damaged line, or incorrect spool tension can still cause backlashes.
1. Magnetic Brakes: Fast & Convenient External Adjustment
Magnetic braking systems position fixed magnets adjacent to an inductive metallic ring or plate attached to the spool. As the spool rotates through the magnetic field, eddy currents generate non-contact magnetic drag. An external dial on the side plate adjusts the proximity of the magnets to the spool to dial in force.
Modern implementationsβsuch as dynamic moving inductorsβallow magnetic resistance to engage more aggressively during high-speed spool rotation and back off as the cast slows down.
Advantages of Magnetic Brakes
- Instant External Tuning: Adjust settings in seconds via an external dial without opening the side plate.
- Wind & Lure Flexibility: Quick adjustments make it easy to adapt to changing headwinds or aerodynamic lure shapes.
- Consistent Profile: Operates silently without physical wear components or brake shoes to replace.
Limitations
- Non-standardized dial scales vary significantly across manufacturers.
- Excessive magnetic braking can unnecessarily choke casting distance on aerodynamic lures.
2. Centrifugal Brakes: Friction Speed Responsiveness
Centrifugal systems utilize small friction blocks (or brake shoes) mounted on a internal carrier hub. As the spool accelerates at the beginning of a cast, centrifugal force pushes the blocks outward against a smooth friction ring inside the side plate, applying friction-based resistance during peak spool RPMs.
Depending on the reel design, anglers engage or disengage individual blocks by popping open the side plate or using an external adjustment dial linked to a variable friction plate.
Advantages of Centrifugal Brakes
- Speed-Proportional Force: Delivers maximum braking power during high-velocity power casts when backlash risk is highest.
- Free-Flite Terminal Casts: As the spool slows down toward the end of the cast, centrifugal force drops, allowing the spool to spin freely for maximum distance.
- Predictable Cast Feel: Offers excellent control for overhead power casting, long distance bombing, and casting heavy wind-resistant lures.
Limitations
- Internal block adjustments require opening the side plate on traditional models.
- Brake shoes experience friction wear over time and require occasional cleaning.
3. Electronic / DC-Controlled Brakes: Programmed Spool Management
Digitally Controlled (DC) braking systems utilize a microcomputer chip powered by the rotation of the spool (requiring no battery). Sensors calculate spool speed thousands of times per second, engaging electromagnetic energy in micro-bursts based on pre-programmed casting profiles (e.g., wind mode, fluorocarbon, braid, or long-distance modes).
Advantages of Electronic Brakes
- Dynamic Real-Time Control: Continuously recalculates required drag force throughout the entire flight path.
- Superior Wind Resistance: Automatically compensates for sudden wind gusts that slow down lure momentum mid-cast.
- Forgiving Learning Curve: Dramatically reduces backlash frequency for progressing anglers.
Limitations & Tradeoffs
- Higher initial cost and increased internal mechanical complexity.
- Requires selecting the correct pre-programmed mode for your line type and lure weight.
- Does not eliminate the need for proper spool tensioning and thumb control.
Baitcaster Braking Systems Comparison
| Braking System | Adjustment Style | Primary Performance Advantage | Main Tradeoff |
|---|---|---|---|
| Magnetic | External Dial | Instant tuning for changing lures and wind conditions. | Can reduce maximum distance if set too high. |
| Centrifugal | Internal Blocks / External Dial | Responds dynamically to spool RPMs; superior end-of-cast glide. | Internal blocks take longer to reconfigure on water. |
| Digital Control (DC) | Preset Mode Switch | Micro-adjusts braking thousands of times per second for wind. | Higher price point and increased hardware complexity. |
| Dual / Hybrid | Dual Controls | Combines centrifugal speed response with magnetic fine-tuning. | Requires understanding two separate adjustment interfaces. |
Clarifying the Controls: Brakes vs. Spool Tension vs. Drag
Anglers frequently confuse a reel's four primary adjustment knobs. Here is how each control functions:
- Spool Tension Knob: Centers the spool shaft and applies mechanical pressure to eliminate lateral side-to-side play.
- Braking System: Regulates spool rotation speed during flight to prevent overruns caused by momentum mismatches.
- Your Thumb: Provides precise feathering control and halts spool rotation as the lure enters the water.
- Star Drag: Regulates line slippage under pressure after a fish strikes; it has zero impact on casting performance.
Step-by-Step Baseline Setup Guide
| Step # | Setup Action | Operational Purpose |
|---|---|---|
| 1 | Match Lure Rating | Ensure your lure weight falls comfortably within the rod's rated casting specs. |
| 2 | Eliminate Spool Play | Tighten the spool tension knob until side-to-side spool movement disappears, without over-tightening. |
| 3 | Set Conservative Braking | Set magnetic dials or engage 3β4 internal centrifugal blocks (approx. 70β80% max power). |
| 4 | Execute Smooth Test Casts | Make a moderate, fluid casting stroke. Avoid sharp, whip-like arm snaps. |
| 5 | Incremental Calibration | Back off braking 1β2 clicks at a time until you achieve maximum distance with controlled spool behavior. |
For troubleshooting stubborn tangles after setup, read our guide on baitcaster bird nesting explained. To refine your thumb timing and landing target placement, visit five ways to improve baitcaster accuracy.
FAQ
Should I turn my baitcaster brakes all the way up when learning?
Starting with brakes at 70β80% capacity is recommended. Setting brakes to 100% can choke spool rotation prematurely, causing anglers to overpower their casting motion and unintentionally cause more backlashes.
Do DC (Digitally Controlled) baitcasters completely prevent backlashes?
No. While DC systems significantly reduce backlash risk during wind gusts or poor lure trajectory, improper spool tension, extreme lure mismatches, or failing to thumb the spool as the lure hits the water can still cause line tangles.
Are magnetic brakes better than centrifugal brakes?
Neither system is universally superior. Magnetic brakes excel in convenience and quick external adjustments when swapping lure weights or fishing in changing wind. Centrifugal brakes excel in speed-proportional response during long, powerful casts with heavy lures.
